searchablePlate

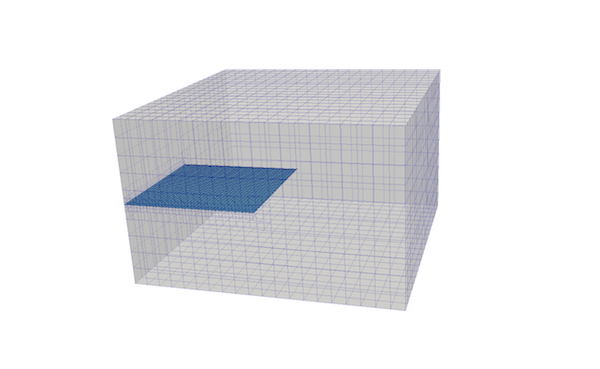

plane example

A finite plate aligned with co-ordinate system. User must specify span in two directions, the third must be zero. Plate could be used e.g. to create a baffle or measuring plane.

Usage

plane
{
    type            searchablePlate;
    origin          (0 0 0);
    span            (2 4 0);
}

Where:

Property	Description	Required
`origin`	Centre of plate	yes
`span`	Span in each direction	yes

Note that the span must have one 0 entry, e.g.

(1 1 0)
(1 0 1)
