searchableExtrudedCircle

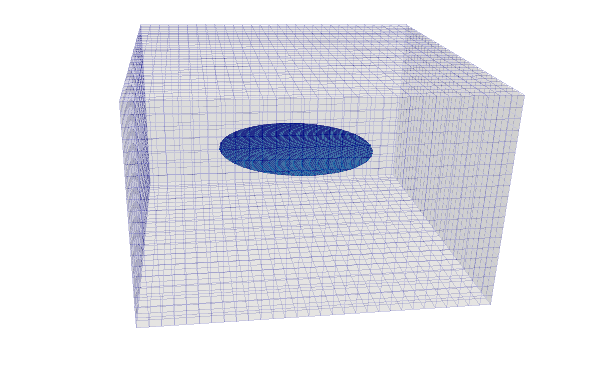

extruded circle example

A shape defined by inflating a segmented line into a tube with constant radius.

Not applicable to snappyHexMesh: only 'near' queries are implemented, i.e. no testing for intersections or inside/outside.

Usage​

cylinder2
{
    type            searchableExtrudedCircle;
    file            "curve2.vtk";
    radius          0.5;
}

Further information​

Tutorial
